How do mechanical fuel pumps work?

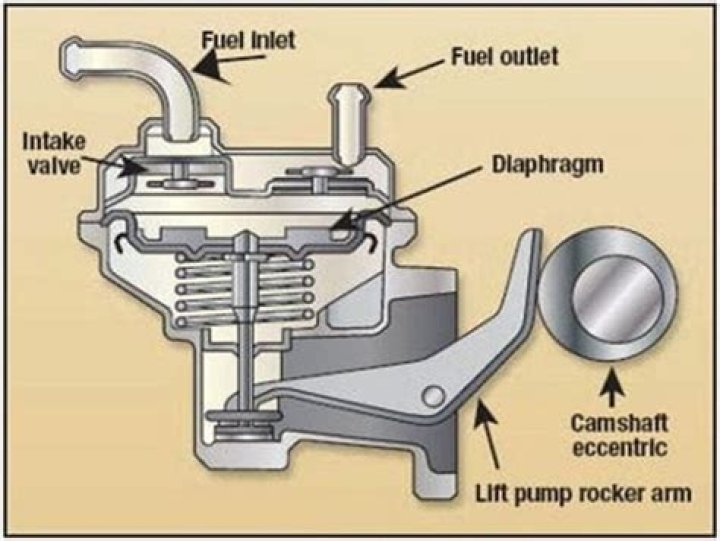

Mechanical fuel pumps use a lever that rides on the camshaft to pump a rubber diaphragm inside the pump up and down. This creates suction that pulls fuel into the pump, and then pushes it along. A pair of one-way valves inside the pump only allow the gas to move in one direction (toward the engine).

.

Consequently, how do I know if my mechanical fuel pump is working?

Crank the engine and watch how the fuel flows from the line. If you see steady, strong spurts, then the pump works. If you see a weak stream or nothing at all, then you could have a failed pump, a blocked fuel line, a clogged fuel filter, or an empty gas tank. Check the fuel pump pressure.

Additionally, how do electric fuel pumps work? Electric Fuel Pump. An electric fuel pump is used on engines with fuel injection to pump fuel from the gas tank to the injectors. The pump must deliver the fuel under high pressure (typically 30 to 85 psi depending on the application) so the injectors can spray the fuel into the engine.

Similarly, it is asked, how long do mechanical fuel pumps last?

Fuel pumps have been known to last for over 200,000 miles in some cases. After 100,000 miles, the failure of the pump is likely enough that if you are replacing a major part in the fuel system nearby, it may be advantageous to replace it at the same time.

What is the fuel pressure on a mechanical fuel pump?

4 to 10 psi

Related Question Answers

Can you clean a mechanical fuel pump?

Cleaning and replacing the pump Wash all parts thoroughly with clean petrol and a fine paintbrush. If possible replace the diaphragm, valves, oil seal, top gasket and mounting gaskets. The new parts are supplied together in a pump overhaul kit.

Can a mechanical fuel pump go bad from sitting?

can a fuel pump o bad from just sitting in a tank of fuel? yes it can, and in a number of ways. water can cause bearings to freeze up, rust can form, fuel goes bad and can gum up the pump. as for replacing the pump, look around for the sending unit, usually located at the top of the tank, and note where it is.

Do you need to prime a mechanical fuel pump?

You don't need to manually prime a mechanical fuel pump the way you do a carb. A fuel pump works on a vacuum; at idle speed, a well-functioning fuel pump should draw enough of a vacuum to prime itself.

Where is a mechanical fuel pump located?

The mechanical fuel pump is located on the engine block near the front of the engine. Naturally, this subjects it to a great deal of engine heat. In addition, a low-pressure area is developed in the fuel line during fuel intake.

How do you test a fuel lift pump?

Lift Pump Testing Procedure:

1. Unplug the two wire connector for the fuel pump.
2. With a volt meter connected to the two pins on the supply (truck) side, turn the key to crank. If you read 12V then the supply side fuse and fuel pump relay are OK.
3. Next start the engine cold.
4. Take the fuel pump side of the connector, with the engine off, key off.

How do you test a fuel pump?

Hook the pressure gauge to the fuel pump test fitting. Locate your fuel pump test point, which is usually near the fuel injectors, and locate the point at which the pump hooks up with the filter injector rail. There should be a separation joint or a test port, where the pressure gauge attaches.

Is mechanical or electric fuel pump better?

The reason for this was because fuel injection systems operate more efficiently at a higher fuel pressure than mechanical pumps can generate. Generally you will find that electrical fuel pumps are located in the fuel tank in order to use the fuel in the tank to cool the pump and ensure a steady supply of fuel.

How do you pressure test a mechanical fuel pump?

You should also check fuel pump pressure. Connect a fuel pressure gauge to the pump outlet, or tee a gauge into the fuel line at the carburetor. Crank the engine and note the pressure reading on the gauge. If there is no pressure, or if pressure is less than specifications, replace the pump.

Does a mechanical fuel pump have a check valve?

A mechanical fuel pump has a two-port check valve, one that is located on the pump's inlet and one that is located on the pump's outlet. The check valve is designed to make the fuel in the vehicle only flow in the correct direction from the fuel pump and to maintain pressure.

Can you use a electric fuel pump with a mechanical pump?

Leave the mechanical pump in place and put an electric one by the tank: You can do this if you want to keep your mechanical fuel pump as a backup in case your electric fuel pump gives out. This is arguably unnecessary because electric fuel pumps are designed to last a long time.

Can a mechanical fuel pump leak oil?

Engine Oil Leaks Where the fuel pump mounts to the timing case cover a gasket provides a tight seal. When this happens, oil can seep out around the fuel pump. If you notice a leak in this area, replace the seal as soon as possible, as detergents in the engine oil can cause further damage.

Why do fuel pumps fail?

A leading cause of fuel pump failure is running the fuel tank low. Running such a vehicle out of fuel once can permanently damage the fuel pump. When the fuel level is low, the pump has to work much harder to produce the same pressure. This is because the reduced fuel weight no longer pushes fuel into the pump.

How much fuel pressure is needed for a carburetor?

Fuel pressure should be set between 6 and 8 psi for a gasoline carburetor. An alcohol carburetor is a different animal with very different requirements. The Alky carburetor will require 4 to 5 psi at idle and 9 to 12 psi at wide open throttle. Remember, fuel pressure is not a substitute for volume!

Do I need a relay for electric fuel pump?

Electric pumps push fuel much better than they can pull it. -Electrical power to them is everything. You must have the correct wire size to it. A relay is preferred.

What are the three most commonly used pump designs?

There are three basic types of pumps: positive displacement, centrifugal and axial-flow pumps. In centrifugal pumps the direction of flow of the fluid changes by ninety degrees as it flows over impeller, while in axial flow pumps the direction of flow is unchanged.

Where is the fuel pump fuse?

Locate the Fuel Pump Relay The fuel pump relay can be found in the fuse box found in the engine bay. Usually, the fuse box is situated on the far right of the engine bay, near the battery.

What are the two types of electrical fuel pump on EFI vehicles?

There are two types of fuel pumps, the mechanical and the EFI (Electronic fuel injection). Carbureted engines require a certain level of pressure so that the flow of fuel is constant and in times of emergency, fast.

How do you clean an electric fuel pump?

DIY Tips to Clean Electric Fuel Pump Filter

1. Locate fuel pump in the fuel tank. First, you need to figure out where exactly is the fuel pump filter is located in your vehicle.
2. Disconnect battery first.
3. Block the fuel pipes to avoid fuel gushing.
4. Remove and clean all filters with petrol.
5. Clean inside of the filter with clean rag.
6. Check sealing gaskets.
7. Fix it back.

How many years does an electric fuel pump last?

Fuel pumps have been known to last for over 200,000 miles in some cases. After 100,000 miles, the failure of the pump is likely enough that if you are replacing a major part in the fuel system nearby, it may be advantageous to replace it at the same time.
