Hamming code is a set of error-correction codes that can be used to detect and correct the errors that can occur when the data is moved or stored from the sender to the receiver..
Besides, how is Hamming code used in error correction?
Hamming code is a block code that is capable of detecting up to two simultaneous bit errors and correcting single-bit errors. It was developed by R.W. These redundant bits are extra bits that are generated and inserted at specific positions in the message itself to enable error detection and correction.
Also Know, how many errors can Hamming code detect? Hamming codes can detect up to two-bit errors or correct one-bit errors without detection of uncorrected errors. By contrast, the simple parity code cannot correct errors, and can detect only an odd number of bits in error.
Similarly, it is asked, what is Hamming code with example?
Hamming code is a set of error-correction code s that can be used to detect and correct bit errors that can occur when computer data is moved or stored. Hamming code is named for R. W. Hamming of Bell Labs. To enable this, a transmitting station must add extra data (called error correction bits ) to the transmission.
What is the advantage and disadvantage of Hamming code?
The biggest benefit of the hamming code method is effective on networks where the data streams are given for the single-bit errors. The biggest drawback of the hamming code method is that it can solve only single bits issues.
Related Question Answers
What are error detecting codes with examples?
These codes detect the error, if it is occurred during transmission of the original data bitstream. Example − Parity code, Hamming code. Error correction codes − are used to correct the errors present in the received data bitstream so that, we will get the original data.What is Hamming code used for?
Hamming Code in Computer Network. Hamming code is a set of error-correction codes that can be used to detect and correct the errors that can occur when the data is moved or stored from the sender to the receiver. It is technique developed by R.W. Hamming for error correction. Redundant bits –What is the maximum number of errors in a message that can be detected by a parity bit?
The two-dimensional parity checks can detect and correct all single errors and detect two and three errors that occur anywhere in the matrix. However, only some patterns with four or more errors can be detected.What is syndrome in Hamming code?

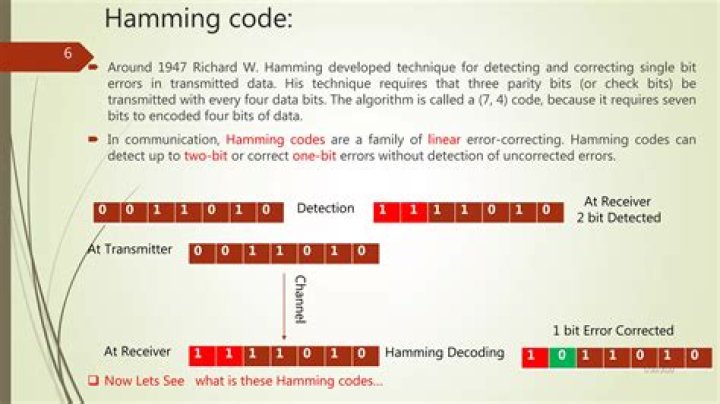

In coding theory, Hamming(7,4) is a linear error-correcting code that encodes four bits of data into seven bits by adding three parity bits. It is a member of a larger family of Hamming codes, but the term Hamming code often refers to this specific code that Richard W. Hamming introduced in 1950.How many Hamming code bits are needed for a 64 bit number?
7
What are the different types of error detection methods?
The most popular Error Detecting Techniques are: - Single parity check.
- Two-dimensional parity check.
- Checksum.
- Cyclic redundancy check.
What is Hamming code distance?
In information theory, the Hamming distance between two strings of equal length is the number of positions at which the corresponding symbols are different. A major application is in coding theory, more specifically to block codes, in which the equal-length strings are vectors over a finite field.What are error correction techniques?
Error Correction can be handled in two ways: Backward error correction: Once the error is discovered, the receiver requests the sender to retransmit the entire data unit. Forward error correction: In this case, the receiver uses the error-correcting code which automatically corrects the errors.What do you mean by parity?
Parity. Parity is a mathematical term that defines a value as even or odd. In computer science, parity is often used for error checking purposes. For example, a parity bit may be added to a block of data to ensure the data has either an even or odd parity.What is difference between CRC and Hamming code?
Both CRC and the Hamming code are binary linear codes. One significant difference is that the Hamming code only works on data of some fixed size (depending on the Hamming code used), whereas CRC is a convolutional code which works for data of any size.How do you check parity?
However, if odd parity checking is used, then parity bit value is zero; 01010001. If the original data contains an even number of 1s (1101001), then parity bit of value 1 is added to the data's left side to make the number of 1s odd, if odd parity checking is used and data transmitted becomes 11101001.Can Hamming code detect 2 bit errors?
The basic Hamming code can detect and correct an error in only a single bit. Some multiple-bit errors are detected, but they may be corrected erroneously, as if they were single-bit errors. By adding another parity bit to the coded word, the Hamming code can be used to correct a single error and detect double errors.What is Error Control Coding?
Noise or Error is the main problem in the signal, which disturbs the reliability of the communication system. Error control coding is the coding procedure done to control the occurrences of errors. There are many different error correcting codes depending upon the mathematical principles applied to them.What is parity code?
A parity bit, or check bit, is a bit added to a string of binary code to ensure that the total number of 1-bits in the string is even or odd. Parity bits are used as the simplest form of error detecting code. If the count of bits with a value of 1 is odd, the count is already odd so the parity bit's value is 0.What is linear block code?
In coding theory, a linear code is an error-correcting code for which any linear combination of codewords is also a codeword. The codewords in a linear block code are blocks of symbols that are encoded using more symbols than the original value to be sent.What are the types of error correcting codes?
Other examples of classical block codes include Golay, BCH, Multidimensional parity, and Hamming codes. Hamming ECC is commonly used to correct NAND flash memory errors. This provides single-bit error correction and 2-bit error detection. Instead, modern codes are evaluated in terms of their bit error rates.How does error correction code work?
Forward error correction (FEC) is a process of adding redundant data such as an error-correcting code (ECC) to a message so that it can be recovered by a receiver even when a number of errors (up to the capability of the code being used) were introduced, either during the process of transmission, or on storage.Which error detection method can detect a burst error?
CRC can detect all double-bit errors (three 1's) CRC can detect any odd number of errors (X+1) CRC can detect all burst errors of less than the degree of the polynomial. CRC detects most of the larger burst errors with a high probability.What is meant by Hamming distance?
While comparing two binary strings of equal length, Hamming distance is the number of bit positions in which the two bits are different. The Hamming distance between two strings, a and b is denoted as d(a,b). It is used for error detection or error correction when data is transmitted over computer networks.
