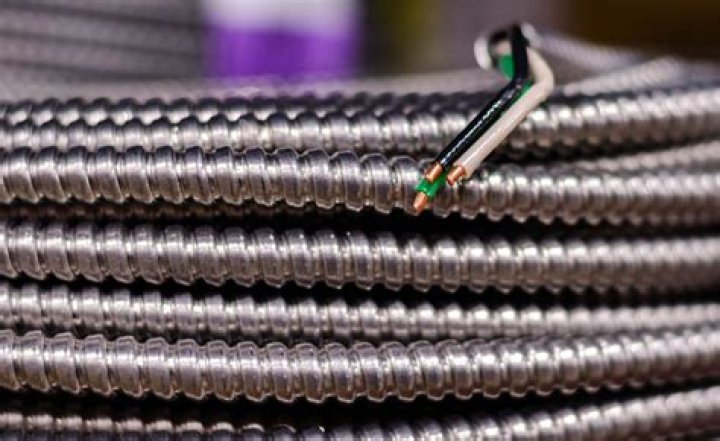

What is metal clad wire used for?
The Metal Clad Cable includes a grounding wire and can be used in outdoor applications. It can go into concealed and unconcealed spaces, and even buried underground. The National Electric Code (NEC), it is also approves it for difficult locations that involve exposure to moisture and hazardous elements.
.
Similarly, it is asked, can you use metal clad cable outdoors?
These cables can be installed either indoors or outdoors and in exposed and concealed locations. They can be direct buried, where identified for such use. Type MC cable with a nonmetallic jacket can also be used in a wet location.
what is metal clad? Clad metal is a composite of two or more dissimilar metals, metallurgically bonded together, to achieve improved functional characteristics, better than those available in a single metal or alloy.
Keeping this in view, how do you cut metal clad cable?
Bend and cut MC cable If you just have one or two cuts to make and don't want to invest in a cutting tool, bend the MC cable sharply until the armor pops open, and then use that opening to start the cut with a side/diagonal cutter. You only need to cut through one section in the armor.
What type of wire is used outside?
Type UF cable is the most commonly used nonmetallic cable for residential outdoor wiring runs.
Related Question AnswersWhat type of wire is used in wet locations?
THWN wireCan BX wire be used outside?
BX Cable and Wiring Basics A chief distinction between BX and NM is that BX can achieve grounding through the outer metal casing. This casing needs to be attached to metal boxes. Another distinction is that some types of BX cable can be installed in exposed locations, either indoors or outdoors.Is MC cable considered conduit?
MC Cable is a cable not a raceway. Raceway. An enclosed channel of metal or nonmetallic materials designed expressly for holding wires, cables, or busbars, with additional functions as permitted in this Code.What type of wire is in MC cable?
MC cable contains conductors from 18 AWG through 2000 kcmil for copper and 12 AWG through 2000 kcmil for aluminum. Typical branch circuit Type MC cables have copper conductors with THHN, THHN/THWN or XHHW insulation and are suitable for circuits up to 600 volts.Is service entrance cable direct burial?
The most common types of direct burial cable used in residential projects are underground service entrance (USE) and underground feeder (UF). While standard NM cable is rated only for dry, interior applications, UF cable can be used outdoors as well as indoors.Is Armoured cable waterproof?
As others have said armoured cable, we have lots of it running fom the house down the garden to get power to a shed, greenhouse, workshop and exterior power point. It has the normal plastic coating and thus is waterproof.What is Armoured cable used for?
Commonly known as SWA cable, the steel wire armoured cable is a power and auxiliary control cable, designed for use in mains supply electricity. Used for underground systems, cable networks, power networks, outdoor and indoor applications, and cable ducting.What is scrap armored cable worth?
Scrap Cable Prices:| Metal Type | Metal Grade | Price Per Ton |
|---|---|---|
| CABLES | Pvc Wire/Household Cable (No plugs) | £1,100 |
| CABLES | Lowgrade Cables | £650 |
| CABLES | #1 Armoured Cable | £700 - £1200 (on val) |
| CABLES | Lead Armoured Cables | £600 - £1000 (on val) |
How do you wire armored cable?
MC cable has a green-insulated ground wire, used like the bare ground wire in NM cable.- Step 1: Bend Cable. Bend the cable about 10 inches from its end and squeeze with your hand until the coils of the armor come apart.
- Step 2: Twist Cable.
- Step 3: Cut Exposed Coil.
- Step 4: Cut the Wires.
- Step 5: Remove Excess.
How do you cut armored electrical wire?
Method 2 Cutting Armored Cable with Side Cutters- Measure your cable and mark it for cutting.
- Bend the cable where you want to make the cut.
- Insert a diagonal cutter into the opening of the armor.
- Cut off the excess armor.
- Slide off the waste piece.
- Cut the wires to length.
- Trim the sharp ends of the remaining armor.
What is the difference between MC and AC cable?
BX is not defined as a term by the NEC and is technically called AC (armored cable). The biggest difference between the two cable systems is that MC has full size ground wire while AC uses a combination of the jacket and a thin bonding strip or wire to function as the equipment ground.Can Armoured cable be joined?
We want to join some electrical armoured cables, but how? Although it is never ideal to join electrical cables, there are times when you need to do so. Jointing systems are applicable up to any practical size of cable and may be followed when it becomes unavoidable to join a pair of cables.What is pipe cladding?
A clad pipe has a Metallurgical bond between pipe and cladding material. The cladding is done by an explosive bonding process or by welding of clad material on a pipe. High strength carbon steel materials are cladded with high corrosion resistant metal to achieve cost benefits.What is bare aluminum?
It's an aircraft aluminum allow that is coated with pure aluminum and it protects the metal quite well from corrosion. Alclad is still used on airliners built for airlines that use bare metal areas on their aircraft.What is metal clad cable?
Metal-Clad Cable is a factory assembly of one or more insulated circuit conductors, with or without optical fiber members, enclosed in an armor of interlocking metal tape or a smooth or corrugated metallic sheath.What does CLX cable stand for?
NAMES. C-L-X® Continuous-Lightweight-Exterior. Welded and corrugated, impervious metallic sheathed cables.How do you cut metal electrical wire?
Wire and Metal Cutting Tools- Use diagonal cutters to cut electrical wires up to a certain gauge.
- Use end nippers instead of diagonal cutters when it comes time to cut staples and nails.
- The jaws of wire rope cutters pull the wire rope into them and trap the cable so that the ends cannot spread.
- Use bolt cutters to cut off locks.
