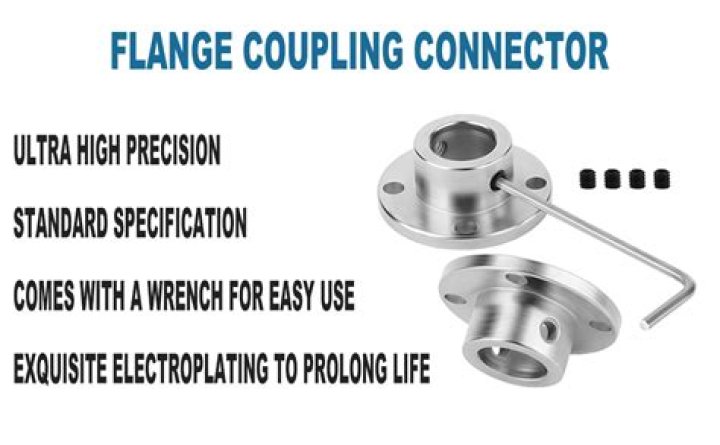

What is rigid flange coupling?

A coupling is a device used to connect two shafts together at their ends for the purpose of transmitting power. Rigid flange coupling are designed for heavy loads or industrial equipment. When joining shafts within a machine, mechanics can choose between flexible and rigid couplings.

In this way, what is a rigid coupling?

Rigid couplings are a type of coupling that should only be utilized when shafts are precisely in line. A rigid coupling is only suitable for shafts in close alignment or held in alignment. If not aligned, torque will transfer to the shafts and bearings and likely cause premature failure.

Secondly, what is Hub in flange coupling? A cylindrical feature on a part fitted on a shaft used to prevent sliding (axial) movement. Hub:the central portion of a wheel, propeller, fan, etc, through which the axle passes . Flange is a projecting rim or edge for fastening, stiffening or positioning. 19.3k views · View 53 Upvoters.

what is a flange coupling?

flange coupling is a type of Coupling used between rotating shafts that consists of flanges one of which is fixed at the end of each shaft, the two flanges being bolted together with abolts fitted circumferentialy to complete the drive.

What is the difference between rigid and flexible coupling?

A flexible coupling can accommodate a slight misalignment between shafts (up to 0.5-degree angular misalignment and 5 mm axial misalignment) but a rigid coupling cannot tolerate any such misalignment.

How does a rigid coupling work?

Rigid couplings clamp onto and join two shafts, making them operate as one, but unlike many coupling types, do not accommodate for misalignment. One-piece designs are slip over the shaft ends closely and are gradually and sequentially clamped by tightening the screws. This allows the coupling to “seat” on the shaft.

Why are rigid couplings used?

Rigid couplings are used to connect machines where it is necessary to maintain shafts in precise alignment. Their advantage is that they provide longer shaft seal life by keeping the shaft alignment more precise, which reduces shaft wear on packing or mechanical seals.

What is a coupling device?

A coupling is a device used to connect two shafts together at their ends for the purpose of transmitting power. Couplings do not normally allow disconnection of shafts during operation, however there are torque limiting couplings which can slip or disconnect when some torque limit is exceeded.

What are the types of coupling?

Types of Couplings-

Muff or Sleeve coupling. Sleeve coupling with labelled parts.
Split Muff coupling. Split muff coupling with parts labelled.
Flange coupling. Flange coupling with labelled parts.
Bush Pin type flexible coupling. Bush pin type flexible coupling with labelled parts.
Gear coupling.
Fluid coupling.
Rzeppa joint.

What are the different types of couplings?

Types of Couplings, Uses and Application

Jaw couplings.
Sleeve couplings.
Tire coupling.
Disc coupling.
Diaphragm coupling.
Mechanical flexing coupling.
Gear Couplings.
Grid couplings.

Where is flexible coupling used?

Flexible couplings are usually used to transmit torque from one shaft to another when the two shafts are slightly misaligned. They can accommodate varying degrees of misalignment up to 1.5° and some parallel misalignment. They can also be used for vibration damping or noise reduction.

What are the three common types of rigid couplings?

There are three main types of rigid couplings: sleeve, flanged and clamped. For commercial shafting, a rigid coupling may be a sleeve with the shafts pressed into each end or it may be a clamping sleeve. The sleeve on each shaft end may have an external flange with bolt holes.

What is the flange coupling?

How many types of flanges are there?

The 13 Types of Flanges for Piping Explained. Which are the most common types of flanges used in piping? How do they look like? The key types of flanges are the welding neck, long welding neck, slip-on, socket weld, lap joint, threaded and blind flanges.

What is the difference between flange and coupling?

In a flanged coupling, a flange is welded to the end of each pipe, and then the two flanges are bolted: The flanged coupling makes it easier to disconnect the pipes when needed, while still withstanding the operating pressure during operation.

What is an Oldham coupling?

The oldham coupling is a form of flexible coupling designed for applications that must be free from backlash. Springs are often used to reduce the coupling's backlash. During operation the center disk slides on the tongues, or tenons, of each hub (which are orientated 90° apart) to transmit torque.

What is protected flange coupling?

Protected Flange Coupling To make it a secure, in these types of flange coupling, the bulging screws and nuts are sheltered by flanges on both the halves of the coupling. This type of arrangement helps in evading dangers for the workers.

Where are couplings used?

Shaft couplings are used for power and torque transmission between two rotating shafts such as on motors and pumps, compressors, and generators.

What is a Phlange?

A flange is an external or internal ridge, or rim (lip), for strength, as the flange of an iron beam such as an I-beam or a T-beam; or for attachment to another object, as the flange on the end of a pipe, steam cylinder, etc., or on the lens mount of a camera; or for a flange of a rail car or tram wheel.

What does class 300 flange mean?

2500. The concept of flange ratings likes clearly. A Class 300 flange can handle more pressure than a Class 150 flange, because a Class 300 flange are constructed with more metal and can withstand more pressure.

How do flanges work?

A flange is a method of connecting pipes, valves, pumps and other equipment to form a piping system. It also provides easy access for cleaning, inspection or modification. Flanges are usually welded or screwed. Flanged joints are made by bolting together two flanges with a gasket between them to provide a seal.

What is coupling in engineering drawing?

Couplings are mechanical elements that 'couples' two drive elements which enables. motion to be transferred from one element to another. The drive elements are normally shafts.

What is the hub of a flange?

Every bicycle rim has has a multitude of parts that each serve a specific function. The hub flange is found on the hub of a bike wheel and provides a place for the spokes.

What is Hub in coupling?

A grid coupling is composed of two shaft hubs, a metallic grid spring, and a split cover kit. Torque is transmitted between the two coupling shaft hubs through the metallic grid spring element. A negative of the grid coupling design is that it generally is very limited in its ability to accommodate the misalignment.
