What is stringer beam?

Girder is called stringer beam . Main steel member along the longitudinal direction is called stringer beam . Use of this to convert distributive load to point load. In a bridge deck the lightly loaded longitudinal beams are the stringers; the heavier, transverse members are called floor beams.

.

Subsequently, one may also ask, what is a stringer in construction?

String, stringer. A timber or other support for cross members in floors or ceilings. In stairs, the supporting member for stair treads. Usually a 2 X 12 inch plank notched to receive the treads.

Furthermore, what is the stringer? In journalism, a stringer is a freelance journalist, photographer, or videographer who contributes reports, photos, or videos to a news organization on an ongoing basis but is paid individually for each piece of published or broadcast work. The term is typically confined to news industry jargon.

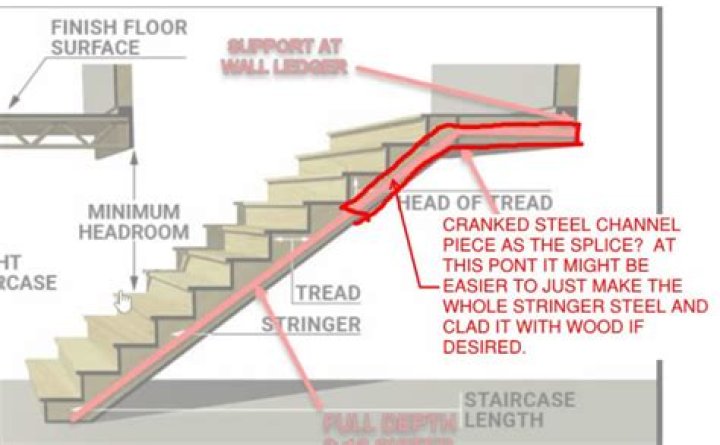

Likewise, what is stringer beam in staircase?

But if the expected loads over stairs are heavy or the span of stair slab is longer the designer may provide a beam instead of slab for economy. Such beams are called stringer beams. In case of non-RCC stairs where steel, wood or composite materials are used the stringer beams are frequently used.

What is the difference between a joist and a stringer?

A joist is a horizontal structural board that is used to span an open space. Stringers are beams that run lengthwise and also help transfer weight for more even distribution and are typically installed on top of the joists. Oftentimes, structural support beams like joists and stringers are exposed to high moisture.

Related Question Answers

What is a stringer used for?

A fish stringer is a line of rope or chain along which a fisherman can string fish so they can be immersed and kept alive in water. A rope stringer (pictured) is the simplest type of fish stringer. It consists of a line of rope or wire with a stringing needle made of metal or hardwood at one end.

What is an open stringer?

Also known as an open stringer. Generally used on the open side of a staircase. Stringer is cut as a bridgeboard, and treads are placed on the stringer. Treads visible from the side, overlapping the stringer by 25 mm. With or without risers.

Why is it called stair stringer?

A stair stringer (also called 'string' or 'stringer board') is the housing on either side of a flight of stairs, into which the treads and risers are fixed. If one edge of the flight sits flush against an adjacent wall, the stringer that connects the treads and risers to the wall is referred to as a 'wall stringer'.

What is a stringer plate?

Definition of stringer plate. : one of the plates forming the outer strake of a ship's deck and being usually heavier than those used for the rest of the deck.

What size lumber is used for stair stringers?

Deck stairs are typically made from 2 x 12 stringers spaced about 12 to 16 inches apart.

What is Stringer in steel structure?

Stringer. a longitudinal member used in the frames of, for example, ships, aircraft, and railroad cars. Stringers usually take the form of flat wood or metal girders. The outer plating of the structure is riveted, welded, or cemented to stringers connected to such transverse members as ribs and beams.

What is a stair string?

Stairs string. A stair string, stringer, or stringer board, is the panel on either side of a flight of stairs to which the treads and risers are fixed. A 'routed string' has slots cut into it, into which the treads and risers can be fixed. A string that is fixed to the wall is described as the 'wall string'.

What is RCC staircase?

R.C.C Stairs OR Reinforced Concrete Stairs: RCC stairs may be the most common stairs widely used than any other types of stair. These stairs can be easily moulded to any desired shape and are better wear and fire resistant. The steps of RCC stairs are made by using ordinary cement concrete.

How do you calculate stair loads?

(i) Loads on going (on projected plan area) (a) Self-weight of waist-slab = 25(0.25)(313.85)/270 = 7.265 kN/m2 (b) Self-weight of steps = 25(0.5)(0.16) = 2.0 kN/m2 (c) Finishes (given) = 1.0 kN/m2 (d) Live loads (given) = 5.0 kN/m2 Total = 15.265 kN/m2 Total factored loads = 1.5(15.265) = 22.9 kN/m2 (ii) Loads on

What is cross girder?

The word Cross-girder implies that there are some main girders and further that the structure involved is bridge-type, which goes in one particular direction for some purpose - e.g. for a bridge, the purpose may be to create say a road access between two points that are separated by say a river.

What are the different types of stairs?

Types of Stairs

• Straight Stairs.
• L Shaped Stairs.
• U Shaped Stairs.
• Winder Stairs.
• Spiral Stairs.
• Curved Stairs.
• Ladders.

What is folded plate staircase?

3. Definition Folded plates are assemblies of flat plates rigidly connected together along their edges in such a way that the structural system capable of carrying loads without the need for additional supporting beams along mutual edges.

What are bridge stringers?

Beam bridges, also known as stringer bridges, are the simplest structural forms for bridge spans supported by an abutment or pier at each end. Bridges designed for modern infrastructure will usually be constructed of steel or reinforced concrete, or a combination of both.

What are stairs made out of?

Stair stringers for decks and porches are almost always made of weather-resistant pressure-treated lumber. The treads and risers can also be cut from treated lumber, but are often made from whatever material is used for decking, such as cedar, redwood, composite lumber, PVC boards, or exotic hardwood.

How do you cantilever stairs?

HOW ARE CANTILEVERED STEPS FIXED? Each step assembly comes with a tread, two brackets, bolts and a telescoping support stud. The stud is installed into a concrete or steel beam with the brackets protruding outward. A wall is then built around the brackets.

Is stringing legal?

Loose white pocket strings are above ball stop. They must be tied through a hole (sidewall or ball stop) or cut off at ends. This stringing is LEGAL.

How much money does a stringer make per hit?

The average salary for Los Angeles Times Freelance Stringer is $74,192 per year, ranging from $71,360 to $76,900.

How do you build stair stringers?

Laying Out Basic Stair Stringers

1. Finding rise and run.
2. Clamp a guide to the square.
3. Find the crown.
4. Lay out the first tread and the second riser.
5. Lay out the second tread and the third riser.
6. Mark the back of the top tread.
7. Mark the plumb cut at the top of the stringer.
8. Lay out the bottom riser.

How do you measure for stringers?

Measure out that distance from the deck to find the exact landing point. From this point, you can measure the exact stair height and determine the stringer and skirt length. Measure the exact total rise (Photo 1). Divide the height (X) by your estimated number of risers to find the exact riser height.
