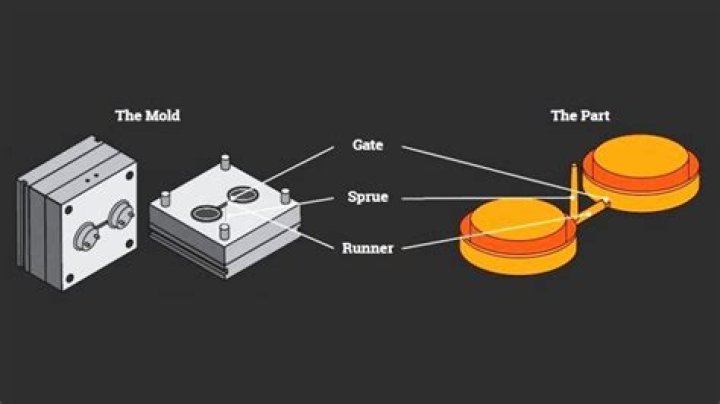

What is the difference between sprue and runner?

A sprue is a large diameter channel through which the material enters the mould. A runner is a smaller diameter channel that directs the molten metal is directed towards the individual part (particularly common when casting multiple parts at once).

Also question is, what is sprue runner and gate for?

It is a part of sprue bush, which is a separate part from the mold. Runner. A runner is a channel that guides molten plastic into the cavity of a mold. Gate. A gate is an entrance through which molten plastic enters the cavity.

Additionally, what is injection molding runner? A hot runner system is an assembly of heated components used in plastic injection molds that inject molten plastic into the cavities of the mold. (The cavities are the part of the mold shaped like the parts to be produced.) A hot runner system usually includes a heated manifold and a number of heated nozzles.

Besides, what is the function of sprue?

A sprue is the vertical passage through which liquid material is introduced into a mold and it is a large diameter channel through which the material enters the mould . During casting or molding, the material in the sprue will solidify and need to be removed from the finished part.

What is the difference between hot runner and cold runner?

The primary difference is that hot runners are heated while cold runners are not. While hot runners are not required for injection molding processes, they can be useful to ensure a higher quality part. A gate location is the point at which molten plastic enters the injection mold tool cavity.

What is the function of runner?

Runner - Runners are passages that distribute molten metal from the sprue to gates or risers around the cavity inside a mold. Runners slow down and smooth out the flow of liquid metal and are designed to provide approximate uniform flow rates to the various parts of the mold cavity.

How many types of runners are there?

three

What is a sprue mark?

All fire marks have a “casting mark,” which is the rough area where the molten iron was either poured directly into the mold cavity or flowed, through channels in the sand, into the mold cavity. In casting, the “sprue” refers to the hole and passage through which the molten iron, or “meld,” is poured into the mold.

Why is silicone a great molding material?

Silicone rubber has several properties that make it the material of choice for most resin molds. Its inert nature gives it good release properties as well as good chemical resistance, and high temperature resistance.

What is sprue gate?

The sprue gate is the simplest and oldest kind of gate. It has a circular cross-section, is slightly tapered, and merges with its largest cross-section into the part. To a large degree the release properties of the sprue also depend on the surface finish of the tapered hole.

What is gating system?

GATING SYSTEM • The term gating system refers to all passageways through which the molten metal passes to enter the mould cavity. • The gating system is composed of ? Pouring basin ? Sprue ? Runner ? Gates ? Risers.

What types of gates are used in Moulding?

Below are the most common gates types in injection molding:

Edge Gate.
Tunnel / Submarine (Sub) Gate.
Cashew Gate.
Direct Sprue Gate.
Diaphragm Gate.
Hot Runner - Thermal Gate.
Hot Runner - Valve Gate.

What is core sand?

Core sand is usually a mixture of sand grains and organic binders which develop great strength after baking at 250–650 F. With the help of core sand, it is possible to create intricate castings by casting metal around thin sand projections without having them break.

What types of material are mostly used in injection molding?

Below are the most common thermoplastics used in injection molding.

Acrylonitrile Butadiene Styrene. Acrylonitrile Butadiene Styrene (ABS), is an opaque thermoplastic and amorphous polymer.
Polyethylene.
Polycarbonate.
Polyamide (Nylon)
High Impact Polystyrene.
Polypropylene.

What is the role of runner extension?

Runners are connected channels that convey the molten metal to different parts of the mould. The filters assist in the removal of any impurities that enter the channels and also control the speed of the molten metal flow.

What is runner balancing?

Balancing the runners is a way of adjusting the runner system so that the flow of melt is evenly distributed to the cavities, in order to produce a better quality part. A balanced runner system ensures that the parts are filled evenly, in the same time and at the same pressure.

What is a mold gate?

The “gate” is the opening in a mold through which the molten plastic is injected into the final part. It is the boundary between part and scrap.

What is MTC in injection Moulding?

MTC is an upcoming technology in the field of injection molding which can heat and cool the cavity surface during the injection molding process. In this research, the heating and cooling systems consist of a mold temperature controller, a heating system, and a mold plate.

What is a gate in casting?

Gate: A gate is simply an opening between the runner and part cavity that ushers the molten metal into the cavity and feeds the casting as it solidifies. A part cavity can have more than one gate if needed.

What is sprue bush in Mould?

The sprue bush is the connecting member between the machine nozzle and the mold face, and provides suitable aperture through which the material can travel on its way to the mould cavity or the start of the runner system in multi-impression molds.

What is advantage of hot runner Mould?

A hot runner makes it easier for a molding machine to inject plastic into a mould cavity. A hot runner increases the capability of a molding machine. It reduces the plastic flow length so a molder can save material by making thinner and lighter parts.

How many types of injection Moulding are there?

two

How does injection molding work?

With injection moulding, granular plastic is fed by a forced ram from a hopper into a heated barrel. As the granules are slowly moved forward by a screw-type plunger, the plastic is forced into a heated chamber, where it is melted. The mould remains cold so the plastic solidifies almost as soon as the mould is filled.

What is cold runner Mould?

Cold Runner Molds. Cold runner molds usually consist of two or three plates that are held within the mold base. The molten thermoplastic is first injected into the mold from a nozzle via the sprue, which fills the network of runners that lead to the mold cavities.
