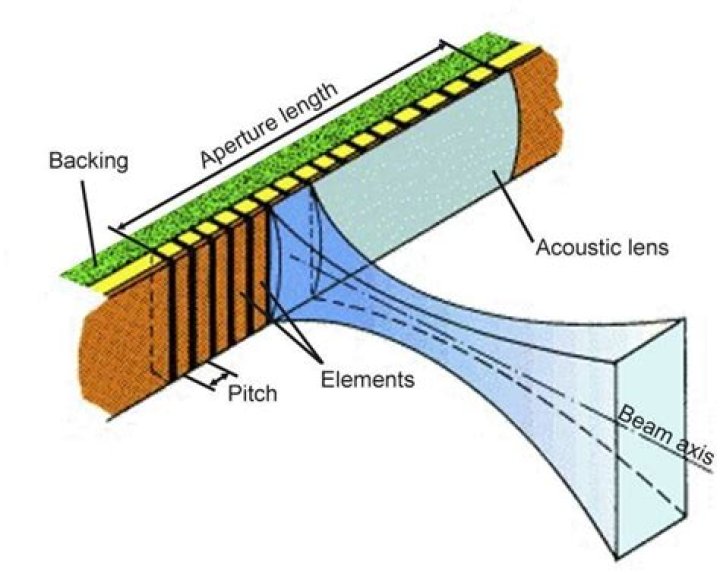

What is a linear array transducer?

A transducer is a device that translates one form of energy to another. Linear, sector, and curved array are three formats of a transducer that determine the shape and field of view. Linear array transducers produce rectangular images and offer the best overall image quality.

.

Keeping this in view, how many elements are in a linear phased array transducer?

Rectangular, 1/4 to 1/2 wavelength wide. There are approximately 100 to 200 elements, each with width of one quarter to half wavelength.

Similarly, what is a linear ultrasound probe? A linear probe uses high frequency ultrasound to create high resolution images of structures near the body surface. This makes the probe ideal for vascular imaging and certain procedures such as central line placement.

Consequently, what are the different types of ultrasound transducers?

Below we list the three most common ultrasound transducer types – linear, convex (standard or micro-convex), and phased array.

What is array in ultrasound?

A phased array ultrasound transducer is typically 2-3 cm long, consisting of 64-128 elements. It is a smaller assembly than a sequential array and can be either linear or curvilinear. A sector field of view is produced by all elements firing to create a single waveform.

Related Question Answers

What is phased array probe?

A phased array transducer is an arrangement of transducer elements properly excited that allow the shaping and control of the ultrasonic beam in a specific manner.

What determines lateral resolution?

By way of contrast, lateral resolution is defined as the ability of the system to distinguish two points in the direction perpendicular to the direction of the ultrasound beam. It is also known as azimuthal resolution. Lateral resolution is affected by the width of the beam and the depth of imaging.

What are the types of probes?

There are three basic types of probe used in emergency and critical care point-of-care ultrasound: linear, curvilinear, and phased array. Linear (also sometimes called vascular) probes are generally high frequency, better for imaging superficial structures and vessels, and are also often called a vascular probe.

How many types of probes are there?

There are four basic types of probes used:

• Linear probes – are generally high frequency better for imaging superficial structures & vessels also called vascular probes.
• Curvilinear probes – have widened footprint and lower frequency for transabdominal imaging & widen the field of view.

What do you mean by transducer?

A transducer is a device that converts energy from one form to another. Usually a transducer converts a signal in one form of energy to a signal in another. The process of converting one form of energy to another is known as transduction.

What are 3 uses of ultrasound?

Ultrasound is a useful way of examining many of the body's internal organs, including but not limited to the:

• heart and blood vessels, including the abdominal aorta and its major branches.
• liver.
• gallbladder.
• spleen.
• pancreas.
• kidneys.
• bladder.
• uterus, ovaries, and unborn child (fetus) in pregnant patients.

How are ultrasound waves produced?

In most applications, ultrasonic waves are generated by a transducer that includes a piezoelectric crystal that converts electrical energy (electric current) to mechanical energy (sound waves). Ultrasound may also be produced by a whistle or siren-type generator.

How big is a transducer?

The transducer is basically a wand that goes inside your vagina to do the ultrasound. It's just a few centimeters wide (with the tip being wider than the rest) and about 12 inches long, Dr.

What is convex probe?

convex array ultrasound probe. Because of its smaller convex contact surface, the curvilinear or convex sector-array fits much better on the abdomen and allows for a wider field of view than does the linear-array configuration.

How many MHz is an ultrasound?

Ultrasound frequencies in diagnostic radiology range from 2 MHz to approximately 15 MHz.

What is a curvilinear probe?

In echocardiography we use curvilinear probes. These have a small footprint (surface from which the ultrasound rays are emitted). Curvilinear probes emit the ultrasound beams in the form of a wave front. The ultrasound crystals emit a beam which has a certain width (beam width).

How does a transducer work in ultrasound?

An ultrasound transducer is the handheld device that the technician or doctor moves on or over the body of the patient. A cord connects it to a computer. The device sends sound waves and receives the echoes as they bounce off the body tissue and organs of the patient.

What is a probe in medical terms?

Medical Definition of Probe Probe: 1: In surgery, a probe is a slender flexible rod with a blunt end used to explore, for example, an opening to see where it goes. 2: In molecular genetics, a probe is a labeled bit of DNA or RNA used to find its complementary sequence or locate a particular clone.

How much is an ultrasound probe?

This would make a 20 transducer ultrasound still cost north of $200, and to make something more interesting like this 40x40 PZT array for 3D imaging would cost about $19,200 for just the transducer array.

What is frequency in ultrasound?

The term "ultrasonic" applied to sound refers to anything above the frequencies of audible sound, and nominally includes anything over 20,000 Hz. Frequencies used for medical diagnostic ultrasound scans extend to 10 MHz and beyond.

What is depth in ultrasound?

Depth. If the ultrasound waves do not penetrate the body to a sufficient depth, you may miss seeing the structure that you want to see. The depth of penetration is related to the frequency of the ultrasound wave. Higher frequencies have a shorter depth of penetration.

What is phased array inspection?

Phased Array. Phased array is an advanced method of ultrasonic testing and can be used for a multitude of different inspection tasks. This technique is used to detect flaws that cannot be easily found with conventional non-destructive testing methods such as radiography and manual ultrasonic testing.

What is an Endocavity probe?

Endocavity Ultrasound Probe Covers Our endocavity probe covers serve as a viral barrier for transrectal and transvaginal ultrasound procedures. Compatible with most ultrasound manufacturers and available in several material types, our endocavity probe covers are trusted to protect the clinician and patient.

What is inside an ultrasound transducer?

In most cases, the active elements in ultrasound transducers are made of special ceramic crystal materials called piezoelectrics. These materials are able to produce sound waves when an electric field is applied to them, but can also work in reverse, producing an electric field when a sound wave hits them.
